DLCコーティングは、被膜の平滑さが高く低摩擦係数を特徴としたアモルファス被膜で工具に使用されています。
ツルツルの表面により、反溶着性や潤滑性が求められるアルミニウム合金に抜群の威力を発揮します。
DLC-ZDS（ショート形）
DLC-LS-ZDS（ショート形 ロングシャンク）
DLC-CR-ZDS（ラジアス ショート形）

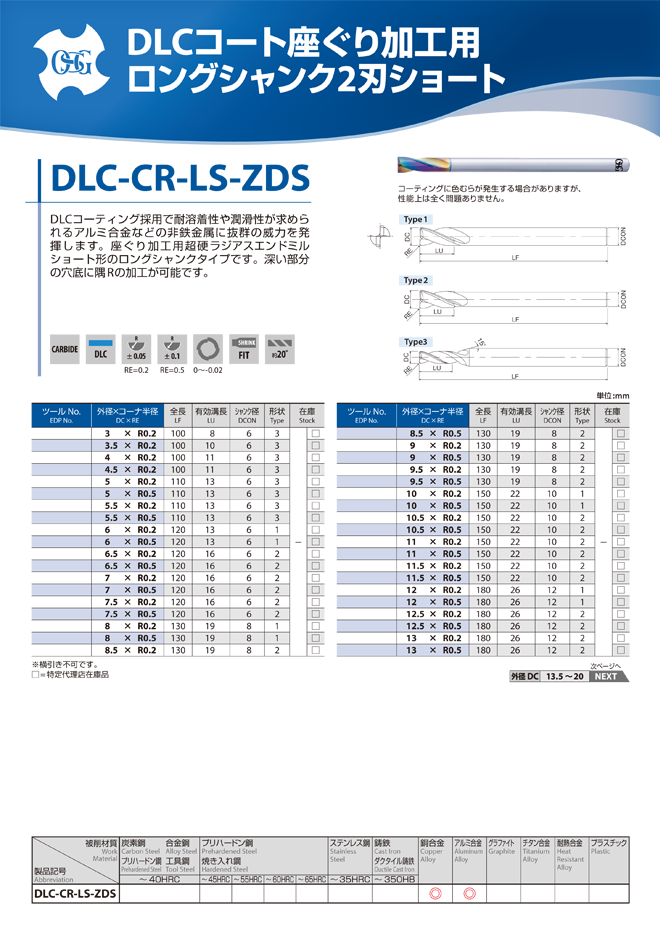

DLC-CR-LS-ZDS（ラジアス ショート形 ロングシャンク）
CA-ZDS（ノンコート ショート形）
CA-LS-ZDS（ノンコート ショート形 ロングシャンク）
DLC-LS-ZDS（ショート形 ロングシャンク）
DLC-CR-ZDS（ラジアス ショート形）
DLC-CR-LS-ZDS（ラジアス ショート形 ロングシャンク）

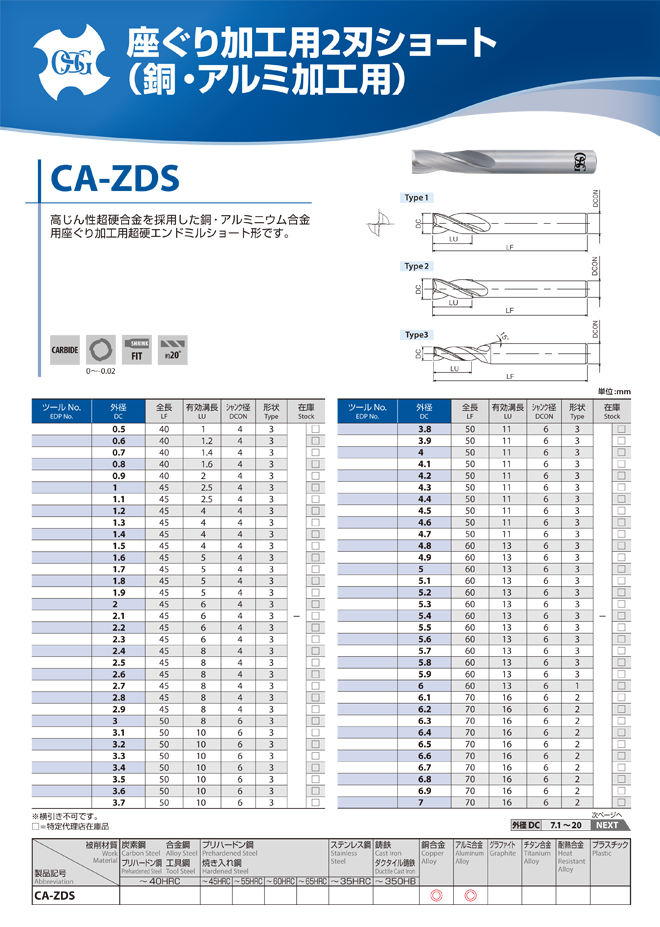

CA-ZDS（ノンコート ショート形）

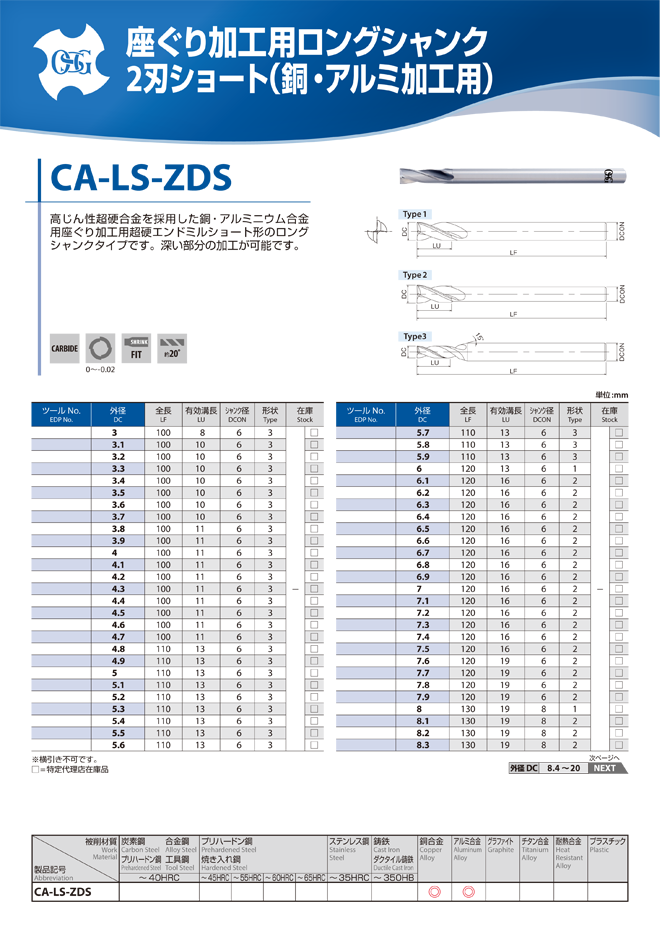

CA-LS-ZDS（ノンコート ショート形 ロングシャンク）
すべてYMKTオリジナル商品です。
※全商品、横引き加工不可です。
特徴
- DLCコーティングは表面ツルツル
- 極薄でのコーティングが可能なため、切刃をシャープに保つことが可能
- アルミニウム合金に抜群の威力を発揮
ラインナップ

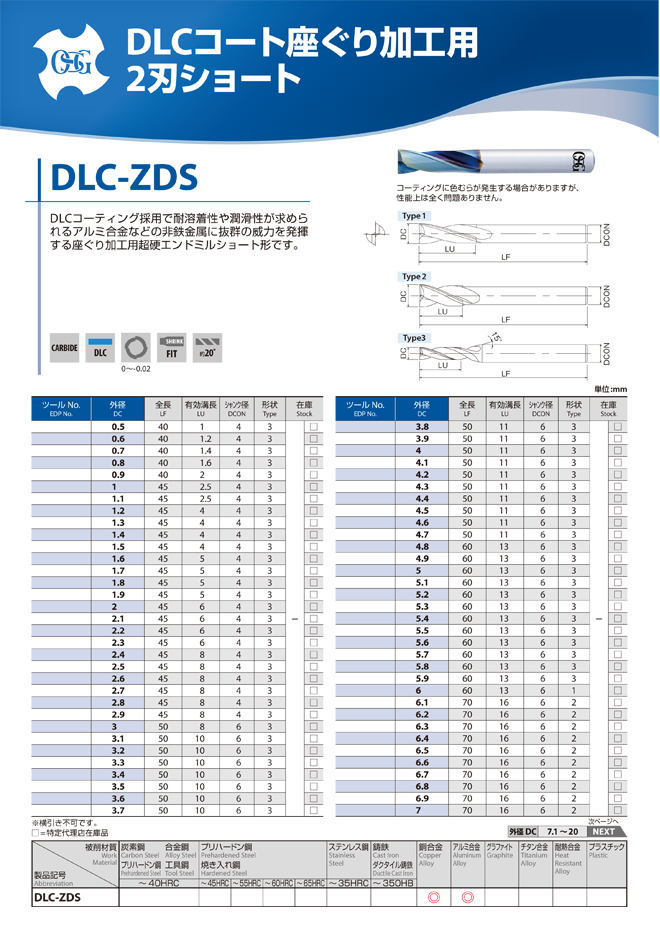

DLC-ZDS
DLCコーティング 座ぐり加工用 ショート形
φ0.5～φ20 計132サイズ
φ0.5～φ20 計132サイズ
寸法ラインナップを
| YMKTﾂｰﾙNo | 外径（DC） | 全長（LF） | 有効溝長（LU） | シャンク径（DCON） | 形状（Type） |
|---|---|---|---|---|---|
| OS74900 | 0.5 | 40 | 1 | 4 | 3 |
| OS74901 | 0.6 | 40 | 1.2 | 4 | 3 |
| OS74902 | 0.7 | 40 | 1.4 | 4 | 3 |
| OS74903 | 0.8 | 40 | 1.6 | 4 | 3 |
| OS74904 | 0.9 | 40 | 2 | 4 | 3 |
| OS74905 | 1 | 45 | 2.5 | 4 | 3 |
| OS74906 | 1.1 | 45 | 2.5 | 4 | 3 |
| OS74907 | 1.2 | 45 | 4 | 4 | 3 |
| OS74908 | 1.3 | 45 | 4 | 4 | 3 |
| OS74909 | 1.4 | 45 | 4 | 4 | 3 |
| OS74910 | 1.5 | 45 | 4 | 4 | 3 |
| OS74911 | 1.6 | 45 | 5 | 4 | 3 |
| OS74912 | 1.7 | 45 | 5 | 4 | 3 |
| OS74913 | 1.8 | 45 | 5 | 4 | 3 |
| OS74914 | 1.9 | 45 | 5 | 4 | 3 |
| OS74915 | 2 | 45 | 6 | 4 | 3 |
| OS74916 | 2.1 | 45 | 6 | 4 | 3 |
| OS74917 | 2.2 | 45 | 6 | 4 | 3 |
| OS74918 | 2.3 | 45 | 6 | 4 | 3 |
| OS74919 | 2.4 | 45 | 8 | 4 | 3 |
| OS74920 | 2.5 | 45 | 8 | 4 | 3 |
| OS74921 | 2.6 | 45 | 8 | 4 | 3 |
| OS74922 | 2.7 | 45 | 8 | 4 | 3 |
| OS74923 | 2.8 | 45 | 8 | 4 | 3 |
| OS74924 | 2.9 | 45 | 8 | 4 | 3 |
| OS74925 | 3 | 50 | 8 | 6 | 3 |
| OS74926 | 3.1 | 50 | 10 | 6 | 3 |
| OS74927 | 3.2 | 50 | 10 | 6 | 3 |
| OS74928 | 3.3 | 50 | 10 | 6 | 3 |
| OS74929 | 3.4 | 50 | 10 | 6 | 3 |
| OS74930 | 3.5 | 50 | 10 | 6 | 3 |
| OS74931 | 3.6 | 50 | 10 | 6 | 3 |
| OS74932 | 3.7 | 50 | 10 | 6 | 3 |
| OS74933 | 3.8 | 50 | 11 | 6 | 3 |
| OS74934 | 3.9 | 50 | 11 | 6 | 3 |
| OS74935 | 4 | 50 | 11 | 6 | 3 |
| OS74936 | 4.1 | 50 | 11 | 6 | 3 |
| OS74937 | 4.2 | 50 | 11 | 6 | 3 |
| OS74938 | 4.3 | 50 | 11 | 6 | 3 |
| OS74939 | 4.4 | 50 | 11 | 6 | 3 |
| OS74940 | 4.5 | 50 | 11 | 6 | 3 |
| OS74941 | 4.6 | 50 | 11 | 6 | 3 |
| OS74942 | 4.7 | 50 | 11 | 6 | 3 |
| OS74943 | 4.8 | 60 | 13 | 6 | 3 |
| OS74944 | 4.9 | 60 | 13 | 6 | 3 |
| OS74945 | 5 | 60 | 13 | 6 | 3 |
| OS74946 | 5.1 | 60 | 13 | 6 | 3 |
| OS74947 | 5.2 | 60 | 13 | 6 | 3 |
| OS74948 | 5.3 | 60 | 13 | 6 | 3 |
| OS74949 | 5.4 | 60 | 13 | 6 | 3 |
| OS74950 | 5.5 | 60 | 13 | 6 | 3 |
| OS74951 | 5.6 | 60 | 13 | 6 | 3 |
| OS74952 | 5.7 | 60 | 13 | 6 | 3 |
| OS74953 | 5.8 | 60 | 13 | 6 | 3 |
| OS74954 | 5.9 | 60 | 13 | 6 | 3 |
| OS74955 | 6 | 60 | 13 | 6 | 1 |
| OS74956 | 6.1 | 70 | 16 | 6 | 2 |
| OS74957 | 6.2 | 70 | 16 | 6 | 2 |
| OS74958 | 6.3 | 70 | 16 | 6 | 2 |
| OS74959 | 6.4 | 70 | 16 | 6 | 2 |
| OS74960 | 6.5 | 70 | 16 | 6 | 2 |
| OS74961 | 6.6 | 70 | 16 | 6 | 2 |
| OS74962 | 6.7 | 70 | 16 | 6 | 2 |
| OS74963 | 6.8 | 70 | 16 | 6 | 2 |
| OS74964 | 6.9 | 70 | 16 | 6 | 2 |
| OS74965 | 7 | 70 | 16 | 6 | 2 |
| OS74966 | 7.1 | 70 | 16 | 6 | 2 |
| OS74967 | 7.2 | 70 | 16 | 6 | 2 |
| OS74968 | 7.3 | 70 | 16 | 6 | 2 |
| OS74969 | 7.4 | 70 | 16 | 6 | 2 |
| OS74970 | 7.5 | 70 | 16 | 6 | 2 |
| OS74971 | 7.6 | 70 | 19 | 6 | 2 |
| OS74972 | 7.7 | 70 | 19 | 6 | 2 |
| OS74973 | 7.8 | 70 | 19 | 6 | 2 |
| OS74974 | 7.9 | 70 | 19 | 6 | 2 |
| OS74975 | 8 | 70 | 19 | 8 | 1 |
| OS74976 | 8.1 | 80 | 19 | 8 | 2 |
| OS74977 | 8.2 | 80 | 19 | 8 | 2 |
| OS74978 | 8.3 | 80 | 19 | 8 | 2 |
| OS74979 | 8.4 | 80 | 19 | 8 | 2 |
| OS74980 | 8.5 | 80 | 19 | 8 | 2 |
| OS74981 | 8.6 | 80 | 19 | 8 | 2 |
| OS74982 | 8.7 | 80 | 19 | 8 | 2 |
| OS74983 | 8.8 | 80 | 19 | 8 | 2 |
| OS74984 | 8.9 | 80 | 19 | 8 | 2 |
| OS74985 | 9 | 80 | 19 | 8 | 2 |
| OS74986 | 9.1 | 80 | 19 | 8 | 2 |
| OS74987 | 9.2 | 80 | 19 | 8 | 2 |
| OS74988 | 9.3 | 80 | 19 | 8 | 2 |
| OS74989 | 9.4 | 80 | 19 | 8 | 2 |
| OS74990 | 9.5 | 80 | 19 | 8 | 2 |
| OS74991 | 9.6 | 80 | 22 | 8 | 2 |
| OS74992 | 9.7 | 80 | 22 | 8 | 2 |
| OS74993 | 9.8 | 80 | 22 | 8 | 2 |
| OS74994 | 9.9 | 80 | 22 | 8 | 2 |
| OS74995 | 10 | 80 | 22 | 10 | 1 |
| OS74996 | 10.1 | 90 | 22 | 10 | 2 |
| OS74997 | 10.2 | 90 | 22 | 10 | 2 |
| OS74998 | 10.3 | 90 | 22 | 10 | 2 |
| OS74999 | 10.4 | 90 | 22 | 10 | 2 |
| OS75000 | 10.5 | 90 | 22 | 10 | 2 |
| OS75001 | 10.6 | 90 | 22 | 10 | 2 |
| OS75002 | 10.7 | 90 | 22 | 10 | 2 |
| OS75003 | 10.8 | 90 | 22 | 10 | 2 |
| OS75004 | 10.9 | 90 | 22 | 10 | 2 |
| OS75005 | 11 | 90 | 22 | 10 | 2 |
| OS75006 | 11.1 | 90 | 22 | 10 | 2 |
| OS75007 | 11.2 | 90 | 22 | 10 | 2 |
| OS75008 | 11.3 | 90 | 22 | 10 | 2 |
| OS75009 | 11.4 | 90 | 22 | 10 | 2 |
| OS75010 | 11.5 | 90 | 22 | 10 | 2 |
| OS75011 | 11.6 | 90 | 22 | 10 | 2 |
| OS75012 | 11.7 | 90 | 22 | 10 | 2 |
| OS75013 | 11.8 | 90 | 22 | 10 | 2 |
| OS75014 | 11.9 | 90 | 26 | 10 | 2 |
| OS75015 | 12 | 90 | 26 | 12 | 1 |
| OS75016 | 12.5 | 100 | 26 | 12 | 2 |
| OS75017 | 13 | 100 | 26 | 12 | 2 |
| OS75018 | 13.5 | 100 | 26 | 12 | 2 |
| OS75019 | 14 | 100 | 26 | 12 | 2 |
| OS75020 | 14.5 | 105 | 26 | 12 | 2 |
| OS75021 | 15 | 105 | 26 | 12 | 2 |
| OS75022 | 15.5 | 115 | 32 | 12 | 2 |
| OS75023 | 16 | 115 | 32 | 16 | 1 |
| OS75024 | 16.5 | 115 | 32 | 16 | 2 |
| OS75025 | 17 | 115 | 32 | 16 | 2 |
| OS75026 | 17.5 | 115 | 32 | 16 | 2 |
| OS75027 | 18 | 115 | 32 | 16 | 2 |
| OS75028 | 18.5 | 115 | 32 | 16 | 2 |
| OS75029 | 19 | 115 | 32 | 16 | 2 |
| OS75030 | 19.5 | 125 | 38 | 16 | 2 |
| OS75031 | 20 | 125 | 38 | 20 | 1 |

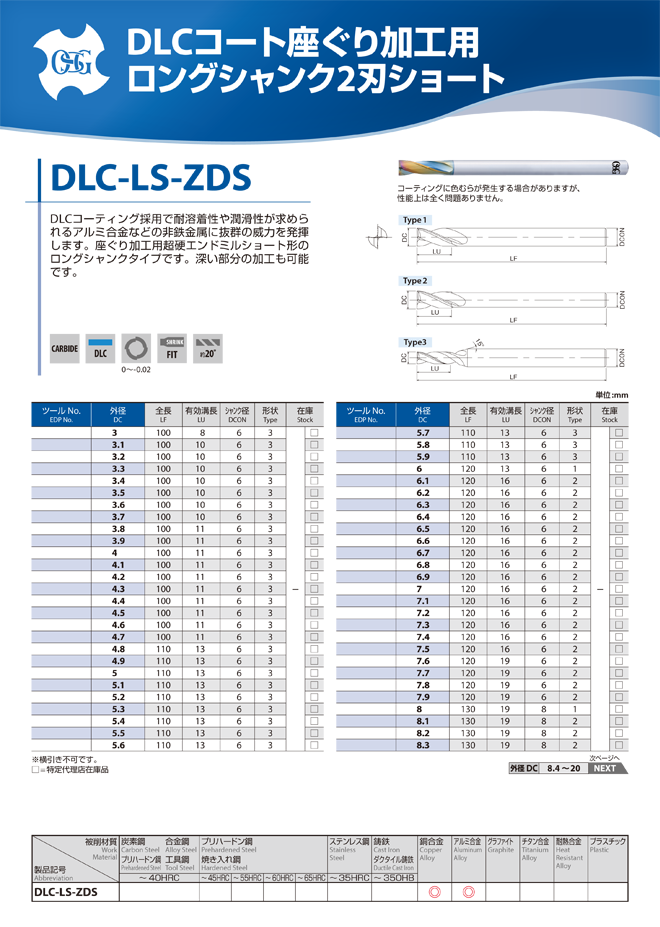

DLC-LS-ZDS
DLCコーティング 座ぐり加工用 ショート形 ロングシャンク
φ3～φ20 計107サイズ
φ3～φ20 計107サイズ
寸法ラインナップを
| YMKTﾂｰﾙNo | 外径（DC） | 全長（LF） | 有効溝長（LU） | シャンク径（DCON） | 形状（Type） |
|---|---|---|---|---|---|
| OS75032 | 3 | 100 | 8 | 6 | 3 |
| OS75033 | 3.1 | 100 | 10 | 6 | 3 |
| OS75034 | 3.2 | 100 | 10 | 6 | 3 |
| OS75035 | 3.3 | 100 | 10 | 6 | 3 |
| OS75036 | 3.4 | 100 | 10 | 6 | 3 |
| OS75037 | 3.5 | 100 | 10 | 6 | 3 |
| OS75038 | 3.6 | 100 | 10 | 6 | 3 |
| OS75039 | 3.7 | 100 | 10 | 6 | 3 |
| OS75040 | 3.8 | 100 | 11 | 6 | 3 |
| OS75041 | 3.9 | 100 | 11 | 6 | 3 |
| OS75042 | 4 | 100 | 11 | 6 | 3 |
| OS75043 | 4.1 | 100 | 11 | 6 | 3 |
| OS75044 | 4.2 | 100 | 11 | 6 | 3 |
| OS75045 | 4.3 | 100 | 11 | 6 | 3 |
| OS75046 | 4.4 | 100 | 11 | 6 | 3 |
| OS75047 | 4.5 | 100 | 11 | 6 | 3 |
| OS75048 | 4.6 | 100 | 11 | 6 | 3 |
| OS75049 | 4.7 | 100 | 11 | 6 | 3 |
| OS75050 | 4.8 | 110 | 13 | 6 | 3 |
| OS75051 | 4.9 | 110 | 13 | 6 | 3 |
| OS75052 | 5 | 110 | 13 | 6 | 3 |
| OS75053 | 5.1 | 110 | 13 | 6 | 3 |
| OS75054 | 5.2 | 110 | 13 | 6 | 3 |
| OS75055 | 5.3 | 110 | 13 | 6 | 3 |
| OS75056 | 5.4 | 110 | 13 | 6 | 3 |
| OS75057 | 5.5 | 110 | 13 | 6 | 3 |
| OS75058 | 5.6 | 110 | 13 | 6 | 3 |
| OS75059 | 5.7 | 110 | 13 | 6 | 3 |
| OS75060 | 5.8 | 110 | 13 | 6 | 3 |
| OS75061 | 5.9 | 110 | 13 | 6 | 3 |
| OS75062 | 6 | 120 | 13 | 6 | 1 |
| OS75063 | 6.1 | 120 | 16 | 6 | 2 |
| OS75064 | 6.2 | 120 | 16 | 6 | 2 |
| OS75065 | 6.3 | 120 | 16 | 6 | 2 |
| OS75066 | 6.4 | 120 | 16 | 6 | 2 |
| OS75067 | 6.5 | 120 | 16 | 6 | 2 |
| OS75068 | 6.6 | 120 | 16 | 6 | 2 |
| OS75069 | 6.7 | 120 | 16 | 6 | 2 |
| OS75070 | 6.8 | 120 | 16 | 6 | 2 |
| OS75071 | 6.9 | 120 | 16 | 6 | 2 |
| OS75072 | 7 | 120 | 16 | 6 | 2 |
| OS75073 | 7.1 | 120 | 16 | 6 | 2 |
| OS75074 | 7.2 | 120 | 16 | 6 | 2 |
| OS75075 | 7.3 | 120 | 16 | 6 | 2 |
| OS75076 | 7.4 | 120 | 16 | 6 | 2 |
| OS75077 | 7.5 | 120 | 16 | 6 | 2 |
| OS75078 | 7.6 | 120 | 19 | 6 | 2 |
| OS75079 | 7.7 | 120 | 19 | 6 | 2 |
| OS75080 | 7.8 | 120 | 19 | 6 | 2 |
| OS75081 | 7.9 | 120 | 19 | 6 | 2 |
| OS75082 | 8 | 130 | 19 | 8 | 1 |
| OS75083 | 8.1 | 130 | 19 | 8 | 2 |
| OS75084 | 8.2 | 130 | 19 | 8 | 2 |
| OS75085 | 8.3 | 130 | 19 | 8 | 2 |
| OS75086 | 8.4 | 130 | 19 | 8 | 2 |
| OS75087 | 8.5 | 130 | 19 | 8 | 2 |
| OS75088 | 8.6 | 130 | 19 | 8 | 2 |
| OS75089 | 8.7 | 130 | 19 | 8 | 2 |
| OS75090 | 8.8 | 130 | 19 | 8 | 2 |
| OS75091 | 8.9 | 130 | 19 | 8 | 2 |
| OS75092 | 9 | 130 | 19 | 8 | 2 |
| OS75093 | 9.1 | 130 | 19 | 8 | 2 |
| OS75094 | 9.2 | 130 | 19 | 8 | 2 |
| OS75095 | 9.3 | 130 | 19 | 8 | 2 |
| OS75096 | 9.4 | 130 | 19 | 8 | 2 |
| OS75097 | 9.5 | 130 | 19 | 8 | 2 |
| OS75098 | 9.6 | 130 | 22 | 8 | 2 |
| OS75099 | 9.7 | 130 | 22 | 8 | 2 |
| OS75100 | 9.8 | 130 | 22 | 8 | 2 |
| OS75101 | 9.9 | 130 | 22 | 8 | 2 |
| OS75102 | 10 | 150 | 22 | 10 | 1 |
| OS75103 | 10.1 | 150 | 22 | 10 | 2 |
| OS75104 | 10.2 | 150 | 22 | 10 | 2 |
| OS75105 | 10.3 | 150 | 22 | 10 | 2 |
| OS75106 | 10.4 | 150 | 22 | 10 | 2 |
| OS75107 | 10.5 | 150 | 22 | 10 | 2 |
| OS75108 | 10.6 | 150 | 22 | 10 | 2 |
| OS75109 | 10.7 | 150 | 22 | 10 | 2 |
| OS75110 | 10.8 | 150 | 22 | 10 | 2 |
| OS75111 | 10.9 | 150 | 22 | 10 | 2 |
| OS75112 | 11 | 150 | 22 | 10 | 2 |
| OS75113 | 11.1 | 150 | 22 | 10 | 2 |
| OS75114 | 11.2 | 150 | 22 | 10 | 2 |
| OS75115 | 11.3 | 150 | 22 | 10 | 2 |
| OS75116 | 11.4 | 150 | 22 | 10 | 2 |
| OS75117 | 11.5 | 150 | 22 | 10 | 2 |
| OS75118 | 11.6 | 150 | 22 | 10 | 2 |
| OS75119 | 11.7 | 150 | 22 | 10 | 2 |
| OS75120 | 11.8 | 150 | 22 | 10 | 2 |
| OS75121 | 11.9 | 150 | 26 | 10 | 2 |
| OS75122 | 12 | 180 | 26 | 12 | 1 |
| OS75123 | 12.5 | 180 | 26 | 12 | 2 |
| OS75124 | 13 | 180 | 26 | 12 | 2 |
| OS75125 | 13.5 | 180 | 26 | 12 | 2 |
| OS75126 | 14 | 180 | 26 | 12 | 2 |
| OS75127 | 14.5 | 180 | 26 | 12 | 2 |
| OS75128 | 15 | 180 | 26 | 12 | 2 |
| OS75129 | 15.5 | 180 | 32 | 12 | 2 |
| OS75130 | 16 | 200 | 32 | 16 | 1 |
| OS75131 | 16.5 | 200 | 32 | 16 | 2 |
| OS75132 | 17 | 200 | 32 | 16 | 2 |
| OS75133 | 17.5 | 200 | 32 | 16 | 2 |
| OS75134 | 18 | 200 | 32 | 16 | 2 |
| OS75135 | 18.5 | 200 | 32 | 16 | 2 |
| OS75136 | 19 | 200 | 32 | 16 | 2 |
| OS75137 | 19.5 | 200 | 38 | 16 | 2 |
| OS75138 | 20 | 220 | 38 | 20 | 1 |

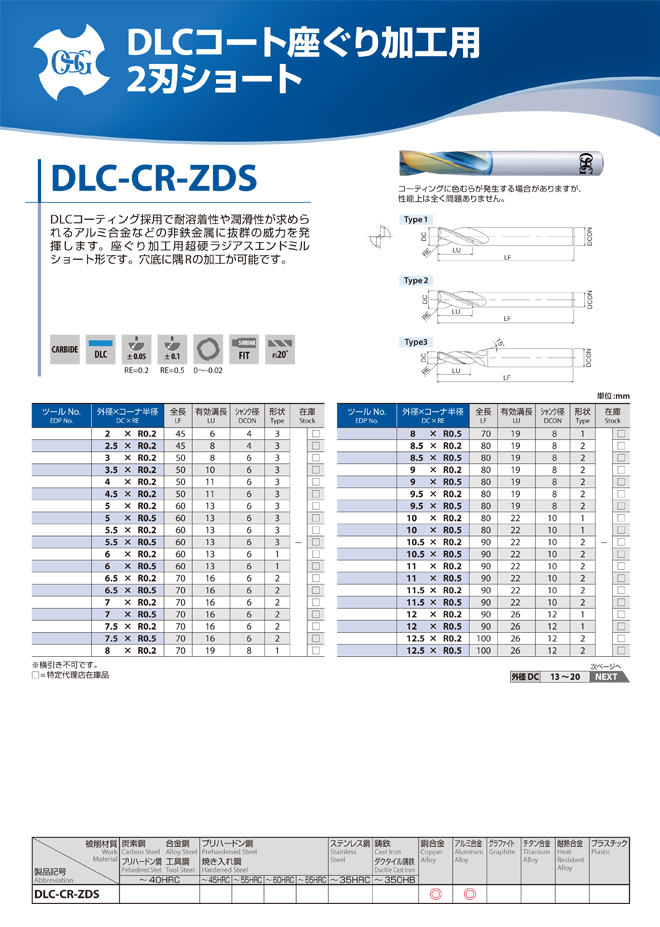

DLC-CR-ZDS
DLCコーティング 座ぐり加工用 ラジアス ショート形
φ2×R0.2～φ20×R0.5
R違い含め 計68サイズ
φ2×R0.2～φ20×R0.5
R違い含め 計68サイズ
寸法ラインナップを
| YMKTﾂｰﾙNo | 外径×コーナ半径（DC×RE） | 全長（LF） | 有効溝長（LU） | シャンク径（DCON） | 形状（Type） |
|---|---|---|---|---|---|
| OS75283 | 2×R0.2 | 45 | 6 | 4 | 3 |
| OS75284 | 2.5×R0.2 | 45 | 8 | 4 | 3 |
| OS75285 | 3×R0.2 | 50 | 8 | 6 | 3 |
| OS75286 | 3.5×R0.2 | 50 | 10 | 6 | 3 |
| OS75287 | 4×R0.2 | 50 | 11 | 6 | 3 |
| OS75288 | 4.5×R0.2 | 50 | 11 | 6 | 3 |
| OS75289 | 5×R0.2 | 60 | 13 | 6 | 3 |
| OS75290 | 5×R0.5 | 60 | 13 | 6 | 3 |
| OS75291 | 5.5×R0.2 | 60 | 13 | 6 | 3 |
| OS75292 | 5.5×R0.5 | 60 | 13 | 6 | 3 |
| OS75293 | 6×R0.2 | 60 | 13 | 6 | 1 |
| OS75294 | 6×R0.5 | 60 | 13 | 6 | 1 |
| OS75295 | 6.5×R0.2 | 70 | 16 | 6 | 2 |
| OS75296 | 6.5×R0.5 | 70 | 16 | 6 | 2 |
| OS75297 | 7×R0.2 | 70 | 16 | 6 | 2 |
| OS75298 | 7×R0.5 | 70 | 16 | 6 | 2 |
| OS75299 | 7.5×R0.2 | 70 | 16 | 6 | 2 |
| OS75300 | 7.5×R0.5 | 70 | 16 | 6 | 2 |
| OS75301 | 8×R0.2 | 70 | 19 | 8 | 1 |
| OS75302 | 8×R0.5 | 70 | 19 | 8 | 1 |
| OS75303 | 8.5×R0.2 | 80 | 19 | 8 | 2 |
| OS75304 | 8.5×R0.5 | 80 | 19 | 8 | 2 |
| OS75305 | 9×R0.2 | 80 | 19 | 8 | 2 |
| OS75306 | 9×R0.5 | 80 | 19 | 8 | 2 |
| OS75307 | 9.5×R0.2 | 80 | 19 | 8 | 2 |
| OS75308 | 9.5×R0.5 | 80 | 19 | 8 | 2 |
| OS75309 | 10×R0.2 | 80 | 22 | 10 | 1 |
| OS75310 | 10×R0.5 | 80 | 22 | 10 | 1 |
| OS75311 | 10.5×R0.2 | 90 | 22 | 10 | 2 |
| OS75312 | 10.5×R0.5 | 90 | 22 | 10 | 2 |
| OS75313 | 11×R0.2 | 90 | 22 | 10 | 2 |
| OS75314 | 11×R0.5 | 90 | 22 | 10 | 2 |
| OS75315 | 11.5×R0.2 | 90 | 22 | 10 | 2 |
| OS75316 | 11.5×R0.5 | 90 | 22 | 10 | 2 |
| OS75317 | 12×R0.2 | 90 | 26 | 12 | 1 |
| OS75318 | 12×R0.5 | 90 | 26 | 12 | 1 |
| OS75319 | 12.5×R0.2 | 100 | 26 | 12 | 2 |
| OS75320 | 12.5×R0.5 | 100 | 26 | 12 | 2 |
| OS75321 | 13×R0.2 | 100 | 26 | 12 | 2 |
| OS75322 | 13×R0.5 | 100 | 26 | 12 | 2 |
| OS75323 | 13.5×R0.2 | 100 | 26 | 12 | 2 |
| OS75324 | 13.5×R0.5 | 100 | 26 | 12 | 2 |
| OS75325 | 14×R0.2 | 100 | 26 | 12 | 2 |
| OS75326 | 14×R0.5 | 100 | 26 | 12 | 2 |
| OS75327 | 14.5×R0.2 | 105 | 26 | 12 | 2 |
| OS75328 | 14.5×R0.5 | 105 | 26 | 12 | 2 |
| OS75329 | 15×R0.2 | 105 | 26 | 12 | 2 |
| OS75330 | 15×R0.5 | 105 | 26 | 12 | 2 |
| OS75331 | 15.5×R0.2 | 115 | 32 | 12 | 2 |
| OS75332 | 15.5×R0.5 | 115 | 32 | 12 | 2 |
| OS75333 | 16×R0.2 | 115 | 32 | 16 | 1 |
| OS75334 | 16×R0.5 | 115 | 32 | 16 | 1 |
| OS75335 | 16.5×R0.2 | 115 | 32 | 16 | 2 |
| OS75336 | 16.5×R0.5 | 115 | 32 | 16 | 2 |
| OS75337 | 17×R0.2 | 115 | 32 | 16 | 2 |
| OS75338 | 17×R0.5 | 115 | 32 | 16 | 2 |
| OS75339 | 17.5×R0.2 | 115 | 32 | 16 | 2 |
| OS75340 | 17.5×R0.5 | 115 | 32 | 16 | 2 |
| OS75341 | 18×R0.2 | 115 | 32 | 16 | 2 |
| OS75342 | 18×R0.5 | 115 | 32 | 16 | 2 |
| OS75343 | 18.5×R0.2 | 115 | 32 | 16 | 2 |
| OS75344 | 18.5×R0.5 | 115 | 32 | 16 | 2 |
| OS75345 | 19×R0.2 | 115 | 32 | 16 | 2 |
| OS75346 | 19×R0.5 | 115 | 32 | 16 | 2 |
| OS75347 | 19.5×R0.2 | 125 | 38 | 16 | 2 |
| OS75348 | 19.5×R0.5 | 125 | 38 | 16 | 2 |
| OS75349 | 20×R0.2 | 125 | 38 | 20 | 1 |
| OS75350 | 20×R0.5 | 125 | 38 | 20 | 1 |
DLC-CR-LS-ZDS
DLCコーティング 座ぐり加工用 ラジアス ショート形 ロングシャンク
φ3×R0.2～φ20×R0.5
R違い含め 計66サイズ
φ3×R0.2～φ20×R0.5
R違い含め 計66サイズ
寸法ラインナップを
| YMKTﾂｰﾙNo | 外径×コーナ半径（DC×RE） | 全長（LF） | 有効溝長（LU） | シャンク径（DCON） | 形状（Type） |
|---|---|---|---|---|---|
| OS75351 | 3×R0.2 | 100 | 8 | 6 | 3 |
| OS75352 | 3.5×R0.2 | 100 | 10 | 6 | 3 |
| OS75353 | 4×R0.2 | 100 | 11 | 6 | 3 |
| OS75354 | 4.5×R0.2 | 100 | 11 | 6 | 3 |
| OS75355 | 5×R0.2 | 110 | 13 | 6 | 3 |
| OS75356 | 5×R0.5 | 110 | 13 | 6 | 3 |
| OS75357 | 5.5×R0.2 | 110 | 13 | 6 | 3 |
| OS75358 | 5.5×R0.5 | 110 | 13 | 6 | 3 |
| OS75359 | 6×R0.2 | 120 | 13 | 6 | 1 |
| OS75360 | 6×R0.5 | 120 | 13 | 6 | 1 |
| OS75361 | 6.5×R0.2 | 120 | 16 | 6 | 2 |
| OS75362 | 6.5×R0.5 | 120 | 16 | 6 | 2 |
| OS75363 | 7×R0.2 | 120 | 16 | 6 | 2 |
| OS75364 | 7×R0.5 | 120 | 16 | 6 | 2 |
| OS75365 | 7.5×R0.2 | 120 | 16 | 6 | 2 |
| OS75366 | 7.5×R0.5 | 120 | 16 | 6 | 2 |
| OS75367 | 8×R0.2 | 130 | 19 | 8 | 1 |
| OS75368 | 8×R0.5 | 130 | 19 | 8 | 1 |
| OS75369 | 8.5×R0.2 | 130 | 19 | 8 | 2 |
| OS75370 | 8.5×R0.5 | 130 | 19 | 8 | 2 |
| OS75371 | 9×R0.2 | 130 | 19 | 8 | 2 |
| OS75372 | 9×R0.5 | 130 | 19 | 8 | 2 |
| OS75373 | 9.5×R0.2 | 130 | 19 | 8 | 2 |
| OS75374 | 9.5×R0.5 | 130 | 19 | 8 | 2 |
| OS75375 | 10×R0.2 | 150 | 22 | 10 | 1 |
| OS75376 | 10×R0.5 | 150 | 22 | 10 | 1 |
| OS75377 | 10.5×R0.2 | 150 | 22 | 10 | 2 |
| OS75378 | 10.5×R0.5 | 150 | 22 | 10 | 2 |
| OS75379 | 11×R0.2 | 150 | 22 | 10 | 2 |
| OS75380 | 11×R0.5 | 150 | 22 | 10 | 2 |
| OS75381 | 11.5×R0.2 | 150 | 22 | 10 | 2 |
| OS75382 | 11.5×R0.5 | 150 | 22 | 10 | 2 |
| OS75383 | 12×R0.2 | 180 | 26 | 12 | 1 |
| OS75384 | 12×R0.5 | 180 | 26 | 12 | 1 |
| OS75385 | 12.5×R0.2 | 180 | 26 | 12 | 2 |
| OS75386 | 12.5×R0.5 | 180 | 26 | 12 | 2 |
| OS75387 | 13×R0.2 | 180 | 26 | 12 | 2 |
| OS75388 | 13×R0.5 | 180 | 26 | 12 | 2 |
| OS75389 | 13.5×R0.2 | 180 | 26 | 12 | 2 |
| OS75390 | 13.5×R0.5 | 180 | 26 | 12 | 2 |
| OS75391 | 14×R0.2 | 180 | 26 | 12 | 2 |
| OS75392 | 14×R0.5 | 180 | 26 | 12 | 2 |
| OS75393 | 14.5×R0.2 | 180 | 26 | 12 | 2 |
| OS75394 | 14.5×R0.5 | 180 | 26 | 12 | 2 |
| OS75395 | 15×R0.2 | 180 | 26 | 12 | 2 |
| OS75396 | 15×R0.5 | 180 | 26 | 12 | 2 |
| OS75397 | 15.5×R0.2 | 180 | 32 | 12 | 2 |
| OS75398 | 15.5×R0.5 | 180 | 32 | 12 | 2 |
| OS75399 | 16×R0.2 | 200 | 32 | 16 | 1 |
| OS75400 | 16×R0.5 | 200 | 32 | 16 | 1 |
| OS75401 | 16.5×R0.2 | 200 | 32 | 16 | 2 |
| OS75402 | 16.5×R0.5 | 200 | 32 | 16 | 2 |
| OS75403 | 17×R0.2 | 200 | 32 | 16 | 2 |
| OS75404 | 17×R0.5 | 200 | 32 | 16 | 2 |
| OS75405 | 17.5×R0.2 | 200 | 32 | 16 | 2 |
| OS75406 | 17.5×R0.5 | 200 | 32 | 16 | 2 |
| OS75407 | 18×R0.2 | 200 | 32 | 16 | 2 |
| OS75408 | 18×R0.5 | 200 | 32 | 16 | 2 |
| OS75409 | 18.5×R0.2 | 200 | 32 | 16 | 2 |
| OS75410 | 18.5×R0.5 | 200 | 32 | 16 | 2 |
| OS75411 | 19×R0.2 | 200 | 32 | 16 | 2 |
| OS75412 | 19×R0.5 | 200 | 32 | 16 | 2 |
| OS75413 | 19.5×R0.2 | 200 | 38 | 16 | 2 |
| OS75414 | 19.5×R0.5 | 200 | 38 | 16 | 2 |
| OS75415 | 20×R0.2 | 220 | 38 | 20 | 1 |
| OS75416 | 20×R0.5 | 220 | 38 | 20 | 1 |
CA-ZDS
ノンコート 座ぐり加工用 ショート形
φ0.5～φ20 計132サイズ
φ0.5～φ20 計132サイズ
寸法ラインナップを
| YMKTﾂｰﾙNo | 外径（DC） | 全長（LF） | 有効溝長（LU） | シャンク径（DCON） | 形状（Type） |
|---|---|---|---|---|---|
| OS65478 | 0.5 | 40 | 1 | 4 | 3 |
| OS65479 | 0.6 | 40 | 1.2 | 4 | 3 |
| OS65480 | 0.7 | 40 | 1.4 | 4 | 3 |
| OS65481 | 0.8 | 40 | 1.6 | 4 | 3 |
| OS65482 | 0.9 | 40 | 2 | 4 | 3 |
| OS65483 | 1 | 45 | 2.5 | 4 | 3 |
| OS65484 | 1.1 | 45 | 2.5 | 4 | 3 |
| OS65485 | 1.2 | 45 | 4 | 4 | 3 |
| OS65486 | 1.3 | 45 | 4 | 4 | 3 |
| OS65487 | 1.4 | 45 | 4 | 4 | 3 |
| OS65488 | 1.5 | 45 | 4 | 4 | 3 |
| OS65489 | 1.6 | 45 | 5 | 4 | 3 |
| OS65490 | 1.7 | 45 | 5 | 4 | 3 |
| OS65491 | 1.8 | 45 | 5 | 4 | 3 |
| OS65492 | 1.9 | 45 | 5 | 4 | 3 |
| OS65493 | 2 | 45 | 6 | 4 | 3 |
| OS65494 | 2.1 | 45 | 6 | 4 | 3 |
| OS65495 | 2.2 | 45 | 6 | 4 | 3 |
| OS65496 | 2.3 | 45 | 6 | 4 | 3 |
| OS65497 | 2.4 | 45 | 8 | 4 | 3 |
| OS65498 | 2.5 | 45 | 8 | 4 | 3 |
| OS65499 | 2.6 | 45 | 8 | 4 | 3 |
| OS65500 | 2.7 | 45 | 8 | 4 | 3 |
| OS65501 | 2.8 | 45 | 8 | 4 | 3 |
| OS65502 | 2.9 | 45 | 8 | 4 | 3 |
| OS65503 | 3 | 50 | 8 | 6 | 3 |
| OS65504 | 3.1 | 50 | 10 | 6 | 3 |
| OS65505 | 3.2 | 50 | 10 | 6 | 3 |
| OS65506 | 3.3 | 50 | 10 | 6 | 3 |
| OS65507 | 3.4 | 50 | 10 | 6 | 3 |
| OS65508 | 3.5 | 50 | 10 | 6 | 3 |
| OS65509 | 3.6 | 50 | 10 | 6 | 3 |
| OS65510 | 3.7 | 50 | 10 | 6 | 3 |
| OS65511 | 3.8 | 50 | 11 | 6 | 3 |
| OS65512 | 3.9 | 50 | 11 | 6 | 3 |
| OS65513 | 4 | 50 | 11 | 6 | 3 |
| OS65514 | 4.1 | 50 | 11 | 6 | 3 |
| OS65515 | 4.2 | 50 | 11 | 6 | 3 |
| OS65516 | 4.3 | 50 | 11 | 6 | 3 |
| OS65517 | 4.4 | 50 | 11 | 6 | 3 |
| OS65518 | 4.5 | 50 | 11 | 6 | 3 |
| OS65519 | 4.6 | 50 | 11 | 6 | 3 |
| OS65520 | 4.7 | 50 | 11 | 6 | 3 |
| OS65521 | 4.8 | 60 | 13 | 6 | 3 |
| OS65522 | 4.9 | 60 | 13 | 6 | 3 |
| OS65523 | 5 | 60 | 13 | 6 | 3 |
| OS65524 | 5.1 | 60 | 13 | 6 | 3 |
| OS65525 | 5.2 | 60 | 13 | 6 | 3 |
| OS65526 | 5.3 | 60 | 13 | 6 | 3 |
| OS65527 | 5.4 | 60 | 13 | 6 | 3 |
| OS65528 | 5.5 | 60 | 13 | 6 | 3 |
| OS65529 | 5.6 | 60 | 13 | 6 | 3 |
| OS65530 | 5.7 | 60 | 13 | 6 | 3 |
| OS65531 | 5.8 | 60 | 13 | 6 | 3 |
| OS65532 | 5.9 | 60 | 13 | 6 | 3 |
| OS65533 | 6 | 60 | 13 | 6 | 1 |
| OS65534 | 6.1 | 70 | 16 | 6 | 2 |
| OS65535 | 6.2 | 70 | 16 | 6 | 2 |
| OS65536 | 6.3 | 70 | 16 | 6 | 2 |
| OS65537 | 6.4 | 70 | 16 | 6 | 2 |
| OS65538 | 6.5 | 70 | 16 | 6 | 2 |
| OS65539 | 6.6 | 70 | 16 | 6 | 2 |
| OS65540 | 6.7 | 70 | 16 | 6 | 2 |
| OS65541 | 6.8 | 70 | 16 | 6 | 2 |
| OS65542 | 6.9 | 70 | 16 | 6 | 2 |
| OS65543 | 7 | 70 | 16 | 6 | 2 |
| OS65544 | 7.1 | 70 | 16 | 6 | 2 |
| OS65545 | 7.2 | 70 | 16 | 6 | 2 |
| OS65546 | 7.3 | 70 | 16 | 6 | 2 |
| OS65547 | 7.4 | 70 | 16 | 6 | 2 |
| OS65548 | 7.5 | 70 | 16 | 6 | 2 |
| OS65549 | 7.6 | 70 | 19 | 6 | 2 |
| OS65550 | 7.7 | 70 | 19 | 6 | 2 |
| OS65551 | 7.8 | 70 | 19 | 6 | 2 |
| OS65552 | 7.9 | 70 | 19 | 6 | 2 |
| OS65553 | 8 | 70 | 19 | 8 | 1 |
| OS65554 | 8.1 | 80 | 19 | 8 | 2 |
| OS65555 | 8.2 | 80 | 19 | 8 | 2 |
| OS65556 | 8.3 | 80 | 19 | 8 | 2 |
| OS65557 | 8.4 | 80 | 19 | 8 | 2 |
| OS65558 | 8.5 | 80 | 19 | 8 | 2 |
| OS65559 | 8.6 | 80 | 19 | 8 | 2 |
| OS65560 | 8.7 | 80 | 19 | 8 | 2 |
| OS65561 | 8.8 | 80 | 19 | 8 | 2 |
| OS65562 | 8.9 | 80 | 19 | 8 | 2 |
| OS65563 | 9 | 80 | 19 | 8 | 2 |
| OS65564 | 9.1 | 80 | 19 | 8 | 2 |
| OS65565 | 9.2 | 80 | 19 | 8 | 2 |
| OS65566 | 9.3 | 80 | 19 | 8 | 2 |
| OS65567 | 9.4 | 80 | 19 | 8 | 2 |
| OS65568 | 9.5 | 80 | 19 | 8 | 2 |
| OS65569 | 9.6 | 80 | 22 | 8 | 2 |
| OS65570 | 9.7 | 80 | 22 | 8 | 2 |
| OS65571 | 9.8 | 80 | 22 | 8 | 2 |
| OS65572 | 9.9 | 80 | 22 | 8 | 2 |
| OS65573 | 10 | 80 | 22 | 10 | 1 |
| OS65574 | 10.1 | 90 | 22 | 10 | 2 |
| OS65575 | 10.2 | 90 | 22 | 10 | 2 |
| OS65576 | 10.3 | 90 | 22 | 10 | 2 |
| OS65577 | 10.4 | 90 | 22 | 10 | 2 |
| OS65578 | 10.5 | 90 | 22 | 10 | 2 |
| OS65579 | 10.6 | 90 | 22 | 10 | 2 |
| OS65580 | 10.7 | 90 | 22 | 10 | 2 |
| OS65581 | 10.8 | 90 | 22 | 10 | 2 |
| OS65582 | 10.9 | 90 | 22 | 10 | 2 |
| OS65583 | 11 | 90 | 22 | 10 | 2 |
| OS65584 | 11.1 | 90 | 22 | 10 | 2 |
| OS65585 | 11.2 | 90 | 22 | 10 | 2 |
| OS65586 | 11.3 | 90 | 22 | 10 | 2 |
| OS65587 | 11.4 | 90 | 22 | 10 | 2 |
| OS65588 | 11.5 | 90 | 22 | 10 | 2 |
| OS65589 | 11.6 | 90 | 22 | 10 | 2 |
| OS65590 | 11.7 | 90 | 22 | 10 | 2 |
| OS65591 | 11.8 | 90 | 22 | 10 | 2 |
| OS65592 | 11.9 | 90 | 26 | 10 | 2 |
| OS65593 | 12 | 90 | 26 | 12 | 1 |
| OS65594 | 12.5 | 100 | 26 | 12 | 2 |
| OS65595 | 13 | 100 | 26 | 12 | 2 |
| OS65596 | 13.5 | 100 | 26 | 12 | 2 |
| OS65597 | 14 | 100 | 26 | 12 | 2 |
| OS65598 | 14.5 | 105 | 26 | 12 | 2 |
| OS65599 | 15 | 105 | 26 | 12 | 2 |
| OS65600 | 15.5 | 115 | 32 | 12 | 2 |
| OS65601 | 16 | 115 | 32 | 16 | 1 |
| OS65602 | 16.5 | 115 | 32 | 16 | 2 |
| OS65603 | 17 | 115 | 32 | 16 | 2 |
| OS65604 | 17.5 | 115 | 32 | 16 | 2 |
| OS65605 | 18 | 115 | 32 | 16 | 2 |
| OS65606 | 18.5 | 115 | 32 | 16 | 2 |
| OS65607 | 19 | 115 | 32 | 16 | 2 |
| OS65608 | 19.5 | 125 | 38 | 16 | 2 |
| OS65609 | 20 | 125 | 38 | 20 | 1 |
CA-LS-ZDS
ノンコート 座ぐり加工用 ショート形 ロングシャンク
φ3～φ20 計107サイズ
φ3～φ20 計107サイズ
寸法ラインナップを
| YMKTﾂｰﾙNo | 外径（DC） | 全長（LF） | 有効溝長（LU） | シャンク径（DCON） | 形状（Type） |
|---|---|---|---|---|---|
| OS65610 | 3 | 100 | 8 | 6 | 3 |
| OS65611 | 3.1 | 100 | 10 | 6 | 3 |
| OS65612 | 3.2 | 100 | 10 | 6 | 3 |
| OS65613 | 3.3 | 100 | 10 | 6 | 3 |
| OS65614 | 3.4 | 100 | 10 | 6 | 3 |
| OS65615 | 3.5 | 100 | 10 | 6 | 3 |
| OS65616 | 3.6 | 100 | 10 | 6 | 3 |
| OS65617 | 3.7 | 100 | 10 | 6 | 3 |
| OS65618 | 3.8 | 100 | 11 | 6 | 3 |
| OS65619 | 3.9 | 100 | 11 | 6 | 3 |
| OS65620 | 4 | 100 | 11 | 6 | 3 |
| OS65621 | 4.1 | 100 | 11 | 6 | 3 |
| OS65622 | 4.2 | 100 | 11 | 6 | 3 |
| OS65623 | 4.3 | 100 | 11 | 6 | 3 |
| OS65624 | 4.4 | 100 | 11 | 6 | 3 |
| OS65625 | 4.5 | 100 | 11 | 6 | 3 |
| OS65626 | 4.6 | 100 | 11 | 6 | 3 |
| OS65627 | 4.7 | 100 | 11 | 6 | 3 |
| OS65628 | 4.8 | 110 | 13 | 6 | 3 |
| OS65629 | 4.9 | 110 | 13 | 6 | 3 |
| OS65630 | 5 | 110 | 13 | 6 | 3 |
| OS65631 | 5.1 | 110 | 13 | 6 | 3 |
| OS65632 | 5.2 | 110 | 13 | 6 | 3 |
| OS65633 | 5.3 | 110 | 13 | 6 | 3 |
| OS65634 | 5.4 | 110 | 13 | 6 | 3 |
| OS65635 | 5.5 | 110 | 13 | 6 | 3 |
| OS65636 | 5.6 | 110 | 13 | 6 | 3 |
| OS65637 | 5.7 | 110 | 13 | 6 | 3 |
| OS65638 | 5.8 | 110 | 13 | 6 | 3 |
| OS65639 | 5.9 | 110 | 13 | 6 | 3 |
| OS65640 | 6 | 120 | 13 | 6 | 1 |
| OS65641 | 6.1 | 120 | 16 | 6 | 2 |
| OS65642 | 6.2 | 120 | 16 | 6 | 2 |
| OS65643 | 6.3 | 120 | 16 | 6 | 2 |
| OS65644 | 6.4 | 120 | 16 | 6 | 2 |
| OS65645 | 6.5 | 120 | 16 | 6 | 2 |
| OS65646 | 6.6 | 120 | 16 | 6 | 2 |
| OS65647 | 6.7 | 120 | 16 | 6 | 2 |
| OS65648 | 6.8 | 120 | 16 | 6 | 2 |
| OS65649 | 6.9 | 120 | 16 | 6 | 2 |
| OS65650 | 7 | 120 | 16 | 6 | 2 |
| OS65651 | 7.1 | 120 | 16 | 6 | 2 |
| OS65652 | 7.2 | 120 | 16 | 6 | 2 |
| OS65653 | 7.3 | 120 | 16 | 6 | 2 |
| OS65654 | 7.4 | 120 | 16 | 6 | 2 |
| OS65655 | 7.5 | 120 | 16 | 6 | 2 |
| OS65656 | 7.6 | 120 | 19 | 6 | 2 |
| OS65657 | 7.7 | 120 | 19 | 6 | 2 |
| OS65658 | 7.8 | 120 | 19 | 6 | 2 |
| OS65659 | 7.9 | 120 | 19 | 6 | 2 |
| OS65660 | 8 | 130 | 19 | 8 | 1 |
| OS65661 | 8.1 | 130 | 19 | 8 | 2 |
| OS65662 | 8.2 | 130 | 19 | 8 | 2 |
| OS65663 | 8.3 | 130 | 19 | 8 | 2 |
| OS65664 | 8.4 | 130 | 19 | 8 | 2 |
| OS65665 | 8.5 | 130 | 19 | 8 | 2 |
| OS65666 | 8.6 | 130 | 19 | 8 | 2 |
| OS65667 | 8.7 | 130 | 19 | 8 | 2 |
| OS65668 | 8.8 | 130 | 19 | 8 | 2 |
| OS65669 | 8.9 | 130 | 19 | 8 | 2 |
| OS65670 | 9 | 130 | 19 | 8 | 2 |
| OS65671 | 9.1 | 130 | 19 | 8 | 2 |
| OS65672 | 9.2 | 130 | 19 | 8 | 2 |
| OS65673 | 9.3 | 130 | 19 | 8 | 2 |
| OS65674 | 9.4 | 130 | 19 | 8 | 2 |
| OS65675 | 9.5 | 130 | 19 | 8 | 2 |
| OS65676 | 9.6 | 130 | 22 | 8 | 2 |
| OS65677 | 9.7 | 130 | 22 | 8 | 2 |
| OS65678 | 9.8 | 130 | 22 | 8 | 2 |
| OS65679 | 9.9 | 130 | 22 | 8 | 2 |
| OS65680 | 10 | 150 | 22 | 10 | 1 |
| OS65681 | 10.1 | 150 | 22 | 10 | 2 |
| OS65682 | 10.2 | 150 | 22 | 10 | 2 |
| OS65683 | 10.3 | 150 | 22 | 10 | 2 |
| OS65684 | 10.4 | 150 | 22 | 10 | 2 |
| OS65685 | 10.5 | 150 | 22 | 10 | 2 |
| OS65686 | 10.6 | 150 | 22 | 10 | 2 |
| OS65687 | 10.7 | 150 | 22 | 10 | 2 |
| OS65688 | 10.8 | 150 | 22 | 10 | 2 |
| OS65689 | 10.9 | 150 | 22 | 10 | 2 |
| OS65690 | 11 | 150 | 22 | 10 | 2 |
| OS65691 | 11.1 | 150 | 22 | 10 | 2 |
| OS65692 | 11.2 | 150 | 22 | 10 | 2 |
| OS65693 | 11.3 | 150 | 22 | 10 | 2 |
| OS65694 | 11.4 | 150 | 22 | 10 | 2 |
| OS65695 | 11.5 | 150 | 22 | 10 | 2 |
| OS65696 | 11.6 | 150 | 22 | 10 | 2 |
| OS65697 | 11.7 | 150 | 22 | 10 | 2 |
| OS65698 | 11.8 | 150 | 22 | 10 | 2 |
| OS65699 | 11.9 | 150 | 26 | 10 | 2 |
| OS65700 | 12 | 180 | 26 | 12 | 1 |
| OS65701 | 12.5 | 180 | 26 | 12 | 2 |
| OS65702 | 13 | 180 | 26 | 12 | 2 |
| OS65703 | 13.5 | 180 | 26 | 12 | 2 |
| OS65704 | 14 | 180 | 26 | 12 | 2 |
| OS65705 | 14.5 | 180 | 26 | 12 | 2 |
| OS65706 | 15 | 180 | 26 | 12 | 2 |
| OS65707 | 15.5 | 180 | 32 | 12 | 2 |
| OS65708 | 16 | 200 | 32 | 16 | 1 |
| OS65709 | 16.5 | 200 | 32 | 16 | 2 |
| OS65710 | 17 | 200 | 32 | 16 | 2 |
| OS65711 | 17.5 | 200 | 32 | 16 | 2 |
| OS65712 | 18 | 200 | 32 | 16 | 2 |
| OS65713 | 18.5 | 200 | 32 | 16 | 2 |
| OS65714 | 19 | 200 | 32 | 16 | 2 |
| OS65715 | 19.5 | 200 | 38 | 16 | 2 |
| OS65716 | 20 | 220 | 38 | 20 | 1 |
DLCコーティング加工事例
A7075の加工
使用工具：
ヘッド交換式エンドミル φ16×R1
他社ノンコート品 φ16×R1 3刃
被削材： A7075他社ノンコート品 φ16×R1 3刃
切削速度： 600m/min （12,000min-1）
送り速度： 2,700mm/min（0.075mm/t）
切削方法： 側面加工
切込深さ：
ap = 8mm（0.5D）
ae = 4.8mm（0.3D）
突出し長さ： 50mmae = 4.8mm（0.3D）
切削油剤： エアブロー
使用機械： 立形マシニングセンタ（BT40）
300m加工時の刃先状態
A5052の加工
使用工具： 超硬3枚刃スクエアエンドミル φ10
被削材質： A5052
切削速度： 200m/min（6,370min-1）
送り速度： 1,530mm/min（0.08mm/t）
切込深さ： ap = 5mm ae = 8mm
切削油剤： エアブロー
使用機械： 立形マシニングセンタ
被削材質： A5052
切削速度： 200m/min（6,370min-1）
送り速度： 1,530mm/min（0.08mm/t）
切込深さ： ap = 5mm ae = 8mm
切削油剤： エアブロー
使用機械： 立形マシニングセンタ
50m加工時の刃先状態
